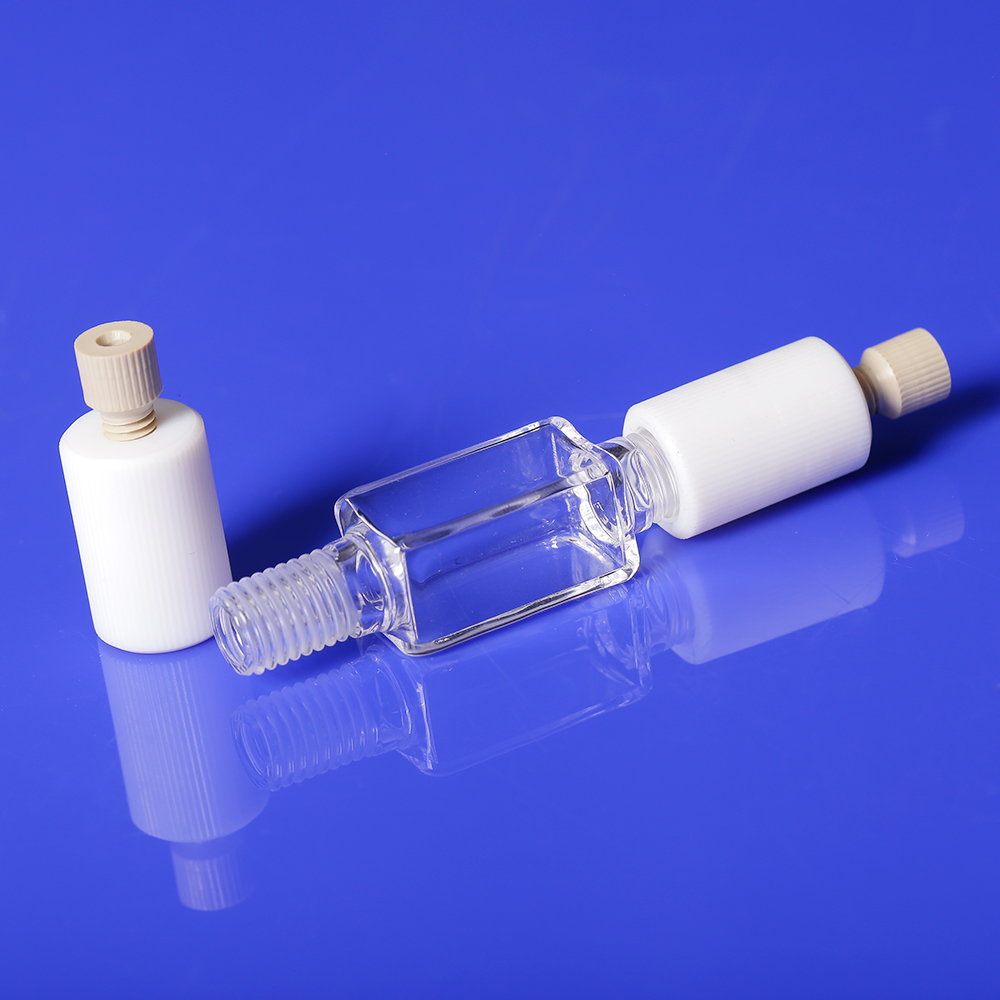

Custom Quartz Cuvette
Compatible with spectroscopic instruments: such as spectrophotometers, bloodline analyzers Particle size analyzer, etc., quantitative and qualitative analysis of substances, widely used in chemical, metallurgical, medical, pharmaceutical, food, environmental protection, power plants, water plants, Oil and other industries, departments and universities, research institutes, testing and use. It is mainly a quartz cuvette fired from quartz powder, and also has a trace amount of Semi-micro, fluorescent and other cuvettes appear.
Outstanding Properties of Quartz Glass Materials
*High purity quartz with silica content 99.99%
*very low thermal couductivity, excellent thermal vibration resistance
*Very high deformation temperature and softening temperature
* High dielectric electric field strength, low dielectric loss, and low conductivity
* Optical transmittance in an extremely wide spectral range from ultraviolet to infrared
* Very good chemical stability, does not react with water, salt solutions and most acids.
* Excellent radiation resistance.
Products Paramenters
| Path Length | Volume | Outer Dimension | Transmittance | Wave Length |
| 0.1mm | 30μL | 45x12.5x2.6mm | ＞83% | 190-2500nm |
| 0.2mm | 60μL | 45x12.5x2.7mm | ＞83% | 190-2500nm |
| 0.5mm | 150μL | 45x12.5x3.0mm | ＞83% | 190-2500nm |
| 1mm | 300μL | 45x12.5x3.5mm | ＞83% | 190-2500nm |
| 2mm | 600μL | 45x12.5x4.5mm | ＞83% | 190-2500nm |
Package
